Code: MP1201

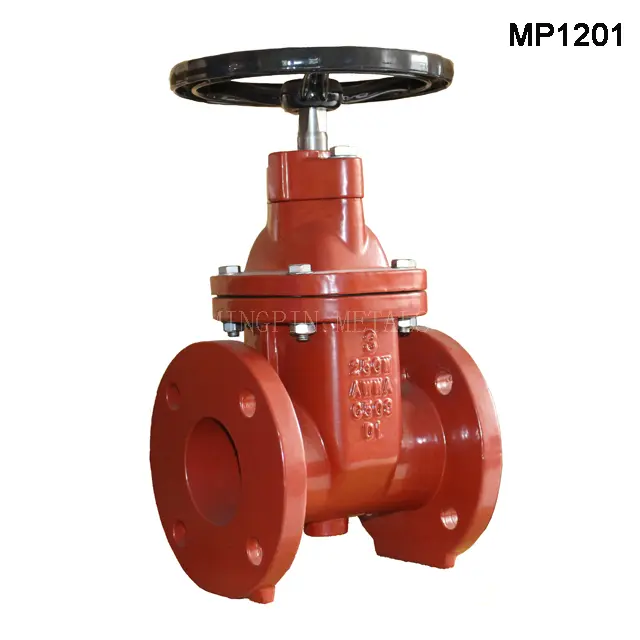

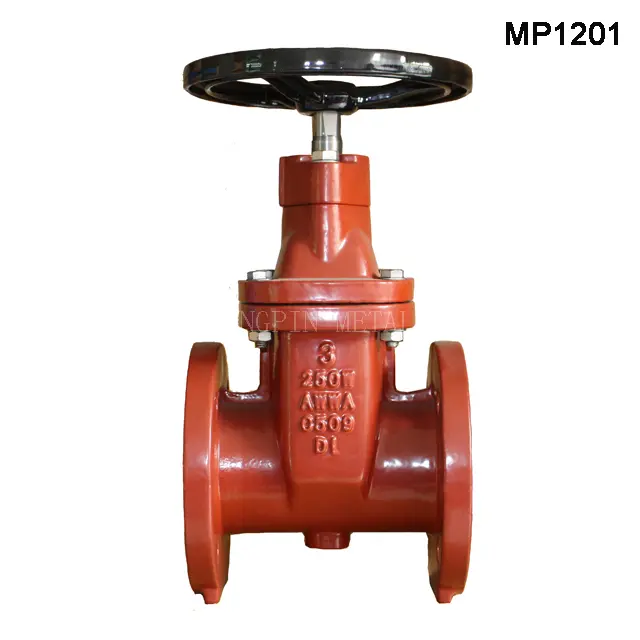

AWWA C509 / C515 Resilient Seated Gate Valve:
Design: AWWA C509 / C515
Specification: AWWA C509 FL x FL, FL x MJ, MJ x MJ
Face to Face: ASME/ANSI B16.10
Flange: ANSI B16.10 Class 125. ANSI / AWWA C110/A21.10. ANSI / AWWA C111/A21.11
Size: DN50-DN1200
Pressure: 250PSI
Coating: Fusion Bonded Epoxy Powder
Operation: Handwheel, Stem Cap, Spur Gearbox, Bevel Gearbox
Brochure:
MP1201.pdf
