Y-Strainer selection skills

Views: 12     Author: Site Editor     Publish Time: 2022-03-03      Origin: Site

In the pipeline system that conveys the medium, the Y-Strainer is an indispensable device. The pipeline system needs the Y-Strainer to remove the impurities in the fluid, so as to protect the normal use of the equipment. Usually the Y-Strainer is installed at the inlet end of the pressure relief valve and other equipment, so pay more attention when selecting the Y-Strainer.

Y-Strainer selection tips:

1. Inlet and outlet diameter:

In principle, the inlet and outlet diameter of the strainer should not be smaller than the inlet diameter of the pump to be matched, which is generally the same as the diameter of the inlet pipeline.

2. Nominal pressure:

Determine the pressure rating of the strainer according to the highest possible pressure in the strainer line.

3. Selection of the number of mesh:

The main consideration is the particle size of impurities to be intercepted, which is determined according to the process requirements of the medium. For the particle size that can be intercepted by various specifications of wire mesh, please refer to "Mesh Specifications".

4. Strainer material:

The material of the strainer is generally the same as the material of the connected process pipeline. For different service conditions, the strainer of cast iron, carbon steel, alloy steel or stainless steel can be considered.

5. Calculation of strainer resistance loss:

For water strainers, under the general calculation of rated flow rate, the pressure loss is 0.52 ~ 1.2Kpa.

As long as you follow the above five points Y-Strainer selection skills, you can buy a satisfactory and reliable product to protect the valve and other equipment from being affected by impurities, causing it to fail to work properly.

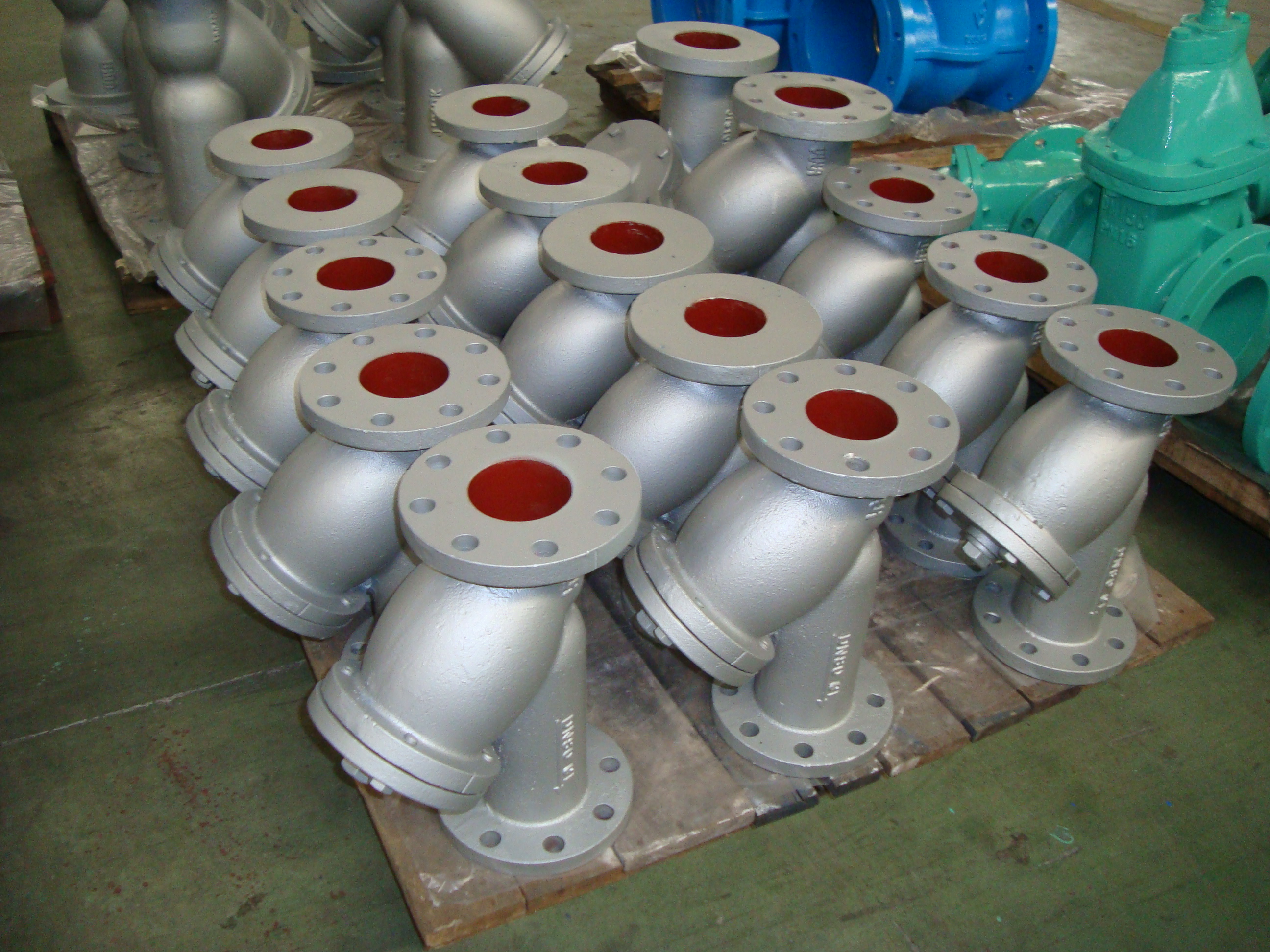

strainer



More details of Y-Strainer, please go to https://www.mingpinmetals.com/Strainer-pl3817724.html
